The door gasket — and why it is often the hinge

A Sub-Zero gasket is a flexible magnetic seal pressed into a channel that runs around the door liner. On a door that hangs true it lasts for years. When one stops sealing on an integrated door, it is as often the symptom as the cause.

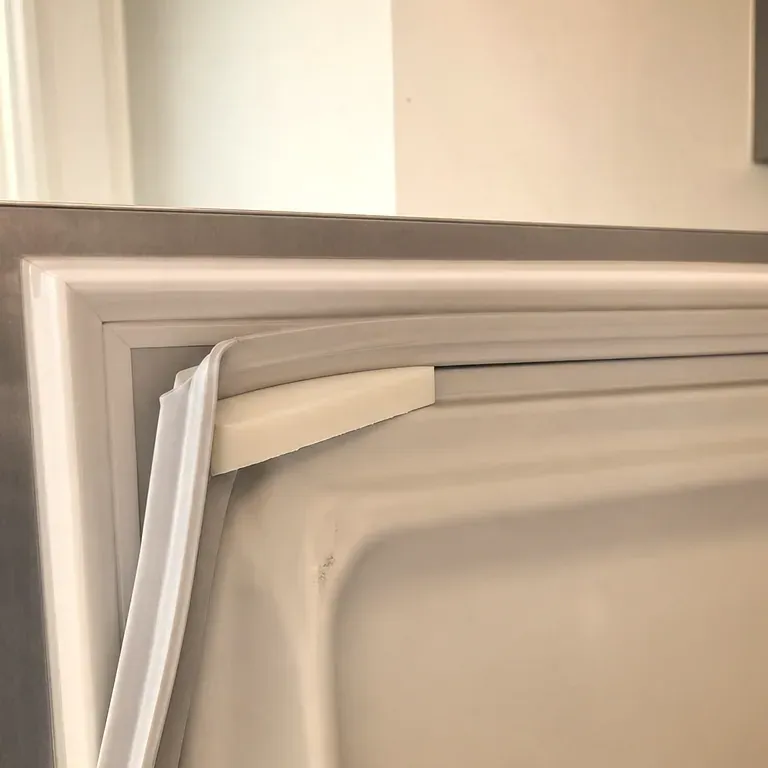

Top corner of a white refrigerator door gasket being eased out of its channel with a plastic wedge.
The upper corner, eased out of its channel. On a dropped door this is where the seal lifts away first.

The paper test

Shut the door on a slip of paper and draw it out at four places: both corners on the handle side, then halfway down each long edge. The drag should be light and even. Paper that falls free at one corner while it grips hard at the opposite one says the door is no longer square to the cabinet.

Why the top corner opens

An integrated door carries its own front. Sub-Zero sets a maximum weight for each model’s custom panel and counts the front panel, any backer and spacer panels fastened to it, the custom handle; only the mounting brackets are left out. A front over that limit, or a hinge worn down by years under one, lets the door drop on the handle side. The lower corner presses harder into the cabinet while the upper corner pulls away.

Cherry Creek kitchens, new condominiums and remodels alike, tend to carry heavy fronts: thick hardwood, stone, metal, long appliance pulls. So on a gasket call we work in a fixed order. Weigh the panel against the figure for the model, check the hinge, and only then judge the seal.

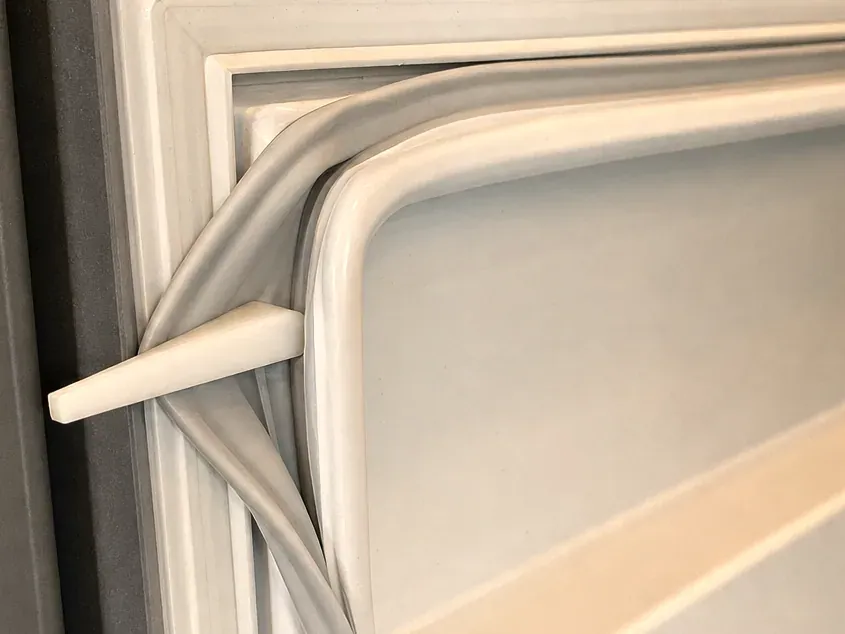

Plastic wedge lifting the edge of a white door gasket away from the door liner.
A plastic wedge lifts the seal from the liner without tearing it. Torn or flattened sections mean a new gasket.

Replacing it

A worn gasket is replaced as one piece, pressed into the channel corner to corner. New ones arrive folded and need time to relax; we seat it, test it all the way round with paper, and leave it closing against a door that hangs square.

Bare hands fitting a dark gasket along the edge of a stainless door with a bar pull, a second gasket coiled on the counter behind.
Seating a replacement into the door channel, with the next one waiting on the counter.

What it costs

Door gasket or seal replacement typically runs $300–$700, depending on the door and the part. That is a range, not a quote: after the diagnosis you get one figure to approve, and the $89 visit is credited against it. If the hinge turns out to be the cause, the hinges and closers page explains what happens next.

Gasket questions

Can a gasket be cleaned rather than replaced?

Often, when it is only sticky or grimy. A soft cloth with warm water and a little mild soap, then drying it off, is the usual approach, and Sub-Zero’s care material covers gasket cleaning. Cleaning will not mend a tear, a flattened run of seal, or a corner that no longer reaches the cabinet face.

Why does frost form along just one edge?

Damp kitchen air is getting in on that side and freezing on the first cold surface it meets. Try the paper strip along that edge. If the seal is open there, look at how the door hangs before you blame the gasket; on a heavy integrated front the cause is often higher up, at the hinge.
